Six Sigma Tools - Pareto Chart

A Pareto chart is a popular Six Sigma tool. It supplies a visible show of knowledge in a way that makes it simple to find out whether or not the Pareto Precept holds.

The x-axis shows the categories into which the information is broken out; that is the discrete attribute variable. On this instance, the classes are varieties of technical help requires financial accounting software program. The y-axis exhibits the variety of cases in every class, a discrete count variable.

The info is organized in a particular approach. The categories are ordered from most common to least common. In some instances when there are many incredible classes, these with the fewest situations are mixed right into an ultimate "Different" column.

Along with the variety of cases in every class, the cumulative share of the full is proven as a quantity and as a line graph. This gives the quickest approach to see if the precept applies. Within the instance proven right here, the primary class makes up 47% of the cases. In different phrases, practically half the tech help calls are for this one motive. When you embrace the second most typical class, the whole goes as much as 72%.

Whereas this is not fairly the 80/20 proportion, it's shut. If the crew can handle simply these two areas, they may have a considerable impression on customer satisfaction and name quantity and prices.

Note that in contrast to a histogram, a Pareto chart ought to at all times have a y-axis that extends to incorporate the worth for the full variety of situations, even when the road graph for cumulative whole/proportion shouldn't be included. It's simple to make incorrect assumptions viewing knowledge that's not displayed appropriately, as within the instance beneath the place the precept clearly doesn't maintain.

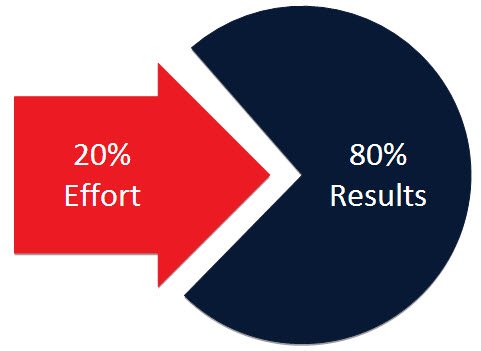

pareto chart

For example, a nonprofit may discover that the standard sample of receiving a majority of donations from a minority of donors doesn't maintain. The leaders may as a substitute take a look at donations damaged out by sort of fund-raising effort: maybe a majority of their funds come from a small portion of their fund-raising actions, and so they might enhance outcomes by specializing in these and lowering others.

A call center team would possibly discover that their assumption that almost all of their technical help requires a particular product come from a small proportion of shoppers shouldn't be right. However, they may then look at the info otherwise and discover that a majority of contacts are for a small proportion of downside sorts or from just one or two buyer segments. This may give them invaluable details about the issues clients are having and easy methods to make improvements with the very best return.
